The place to buy British Seagull spare parts!

To obtain parts, first you need to have identified your motor This link will take you to pages that will help. Try checking the engine number against the list. I would like to know the number when you telephone me.

I have had to cancel my sailing trip this year, to complete my round England, Wales and most of Scotland trip, 'Fiddling Around'. Have to have another op for kidney stones.... they missed one!

Sailing trip postponed for a year...

So next year, hopefully, 2018, British Seagull will be taking my emails and dealing with spares, as last time,  but I will be available by mobile for advice.  If you know you are going to want a few bits, get in before then. Seagull can do most parts but not my s/s parts, specials etc., nor old used parts.

As before, you will be able to keep track of my progress, or lack of it, via the link   below, click the logo.


Full range of all Seagull parts available. Contact me for prices.

John Williams.

Saving Old Seagulls

mailto:john@saving-old-seagulls.co.uk

john@saving-old-seagulls.co.uk




In addition to normal parts I have remanufactured hard to get parts and some in s/s.  I also keep a stock of used parts, especially where castings and the like are no longer available.

Below are a sample of prices, please contact me for any part not here and I will give you prices.  I normally keep all these parts and more, but due to the large demand sometimes I maybe out of stock awaiting delivery, supply etc.

None of these parts include P&P, as owners often put together a wish list of parts. Minimum P&P £1.50, but charges generally kept as low as I can. I have added a few sample P&P prices for guidance.

converter logotext

Have added a link to a converter so you can compare prices in your part of the world!

Thanks to Hans for this suggestion.


General Spares

This is just a selection, as a price guide, virtually every part stocked! Too many to list!

but....

Villiers ignition coils...

Speak to George at www.villiersparts.co.uk

He is the only man to sell these newly made ones, any others seen for sale are old stock and very suspect..  they can fail just sat on the shelf, they maybe are good for 20 years only.... the shellac insulation on the old ones was biodegradable. and as the last ones were made in 1967..... Not surprising I hear of Villiers coil failures almost every day.


Workshop manual,

The  full maintenance manual all square block and 102 model £11.50 plus P&P £2.00 UK £6.50 overseas.

Owners Handbook,

for all magneto and  CD ignitions, basic how to start it etc. 7.25 plus P&P UK 2.00 overseas £4.50

Spares book,

for all models except 170/QB  full of exploded drawings of all parts. 7.50  P&P UK 2.00 overseas £4.50

QB Manual 10.50  P&P UK 2.00 overseas £5.50

QB handbook £9.25  plus P&P UK £2.00 overseas £5.50

QB spares book full of exploded drawings of all parts. 12.00  plus P&P UK 2.00 overseas 5.50

Spares book  for 102 full of exploded drawings of all parts. 5.50  plus P&P UK 2.00 overseas 3.50

SOS Seagull notelet SOS Notelets!  Pack of 5  cards and envelopes £5.00  P&P £2.00

Poster same pic as notelets,  approx 18 inches by 9 10.00

Whitworth spanners.  That special obstruction spanner, ring spanner and 1/4 BSFxxxx (Oops! should read 1/4 Whit of course!!) socket back in stock!! Sadly though I have no tool rolls left,  just the spanners.  12.50 set.

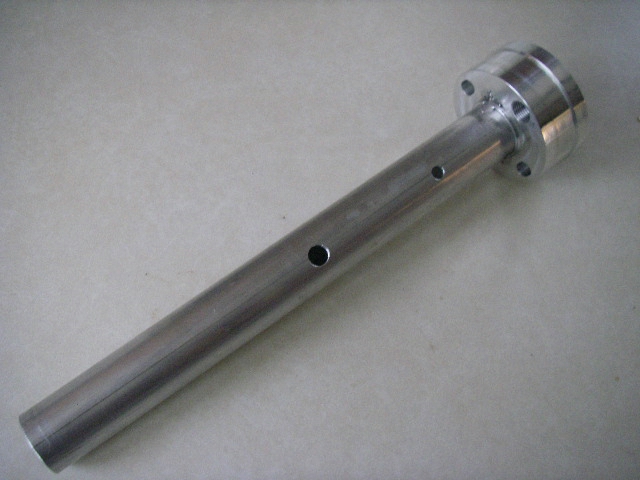

kingfisher inner exhaust SOS made, New inner exhausts. sold out sorry..

Sadly now all gone, and I do not intend having more made, these took a long time to go off the shelf!



British Seagull propspring Seagull standard prop spring, fits 90% of Seagulls now increased sadly to  4.25 plus 3.50 P&P UK. Can post several for this... (seen advertised elsewhere for £9.99 plus  P&P!)

special washer and pin for prop Special washer and stainless pin for prop spring £2.50 (buy with the drive spring for 6.00).

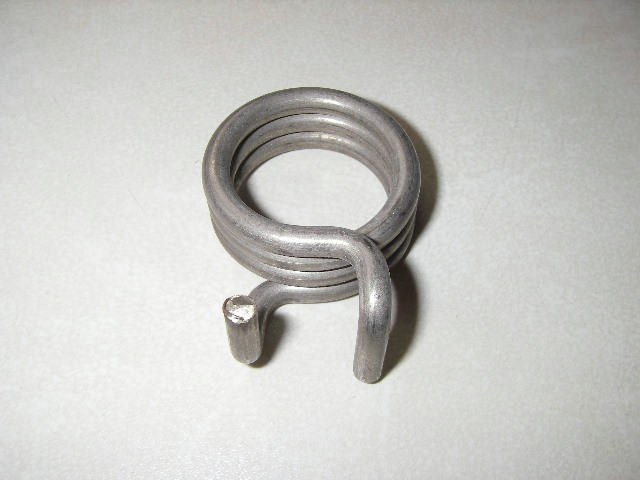

prop springs  for fnr gbx Special Seagull drive springs for motors with FNR gearboxes. Model 90/110 £9.00, Larger ones for Kingfisher and the 170 £14.50

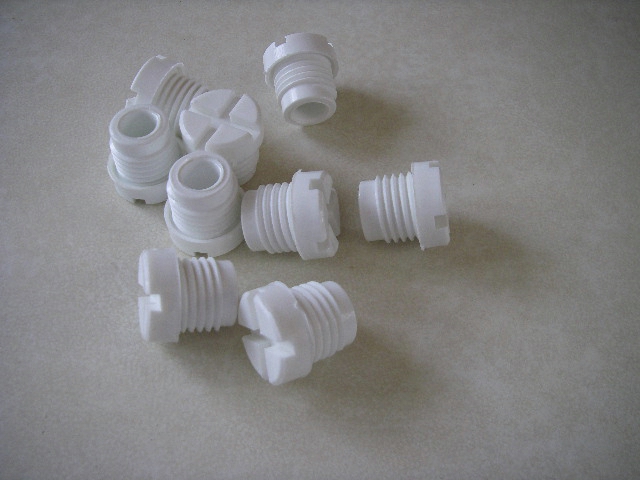

British Seagull gearbox plugs  Gearbox plugs. sadly price increased to 4.75.

Not rare or unobtainable... (despite what you might read elsewhere!)  and as far as I am aware only 3 types have ever existed,  the original brass one, the bendy polythene ones of the 1950's and 60's, and the later rigid plastic ones that Seagull do now and of course I sell. £4.75, Yes that's all, not £9.99 as we have seen, beware the eBay shops!

Brass Gearbox plugs.

I have a small number of these newly made in brass, for the collector refurbishing one of the older models 15.00 ....



sos multispanner SOS Stainless Multi-spanner 10.00.

Precision laser cut Whitworth/BSF sizes, also fits most spark plugs! Correct thickness to fit gearbox drain plugs too! Laser cut  with 'SOS' and finished in polished stainless, no more rusting lumps of spanner in the bilge .  I have knocked   out the 'O' in the 'SOS' to tie to boat with lanyard!  Down to the last few now....

10.00 plus 2.00 P&P UK, 5.50 over seas

ss 102 tank straps Stainless tank straps for 102 25.00,  as shown.

New supplies....   October 2017.... limited number of sets available...



Oval long range tanks straps now available again 25.00 pair.

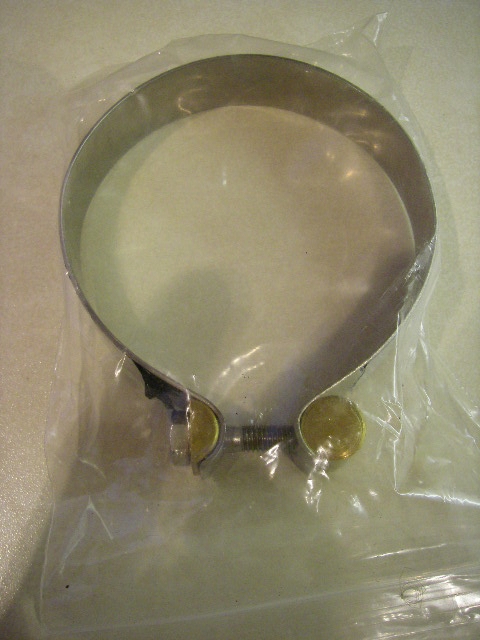

stainless exhaust clamp New Stainless Exhaust clips. £12.00

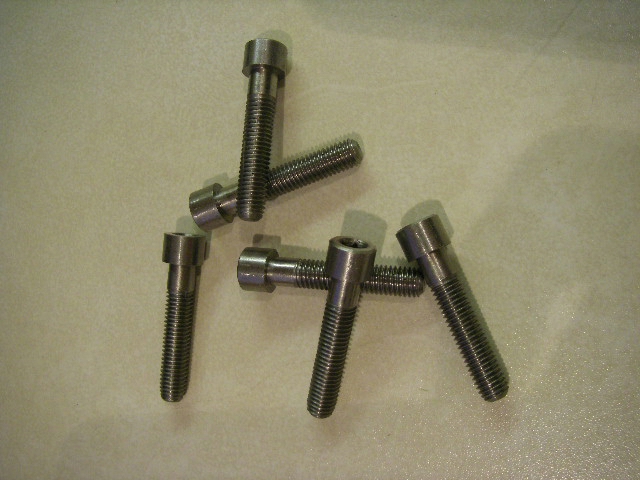

assorted stainless screws Now virtually all the British Seagull nuts and bolts available in Stainless! full kits available £85 to £100 approx, or individual fastenings.

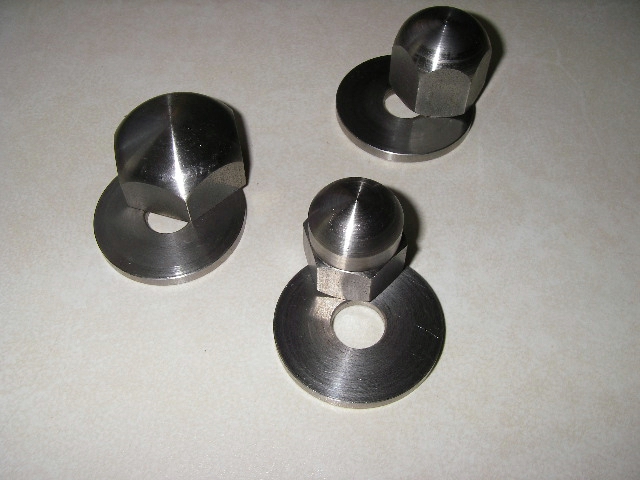

flywheel nuts and washers Dome nuts and washers in stainless for early Villiers, 7.50 (late Villiers and Wipac sold out...) . Beware other sites selling washer alone for this price! Late Villiers dome no longer available in s/s. but  I have a few nice used ones, chromed brass. 5.00

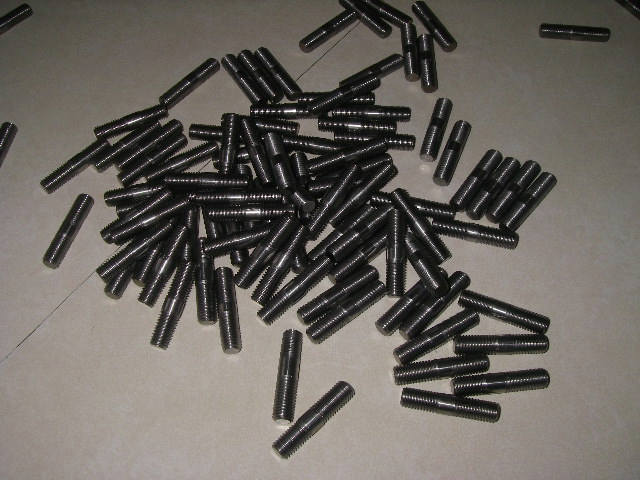

crankcase base studs  s/s 5/16 BSF base studs for crankcase/drive leg, with s/s washers and s/s nuts, per pair, £11.00

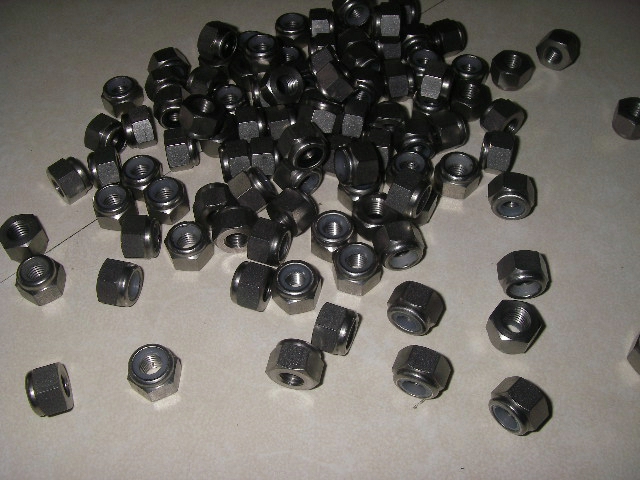

nylock nuts  s/s 5/16 BSF Nylock nuts for some fuel tanks etc £2.50 each

engine lug studs s/s 5/16 BSF engine mounting lug studs, drilled with pin washer and nut, per pair, £16.00

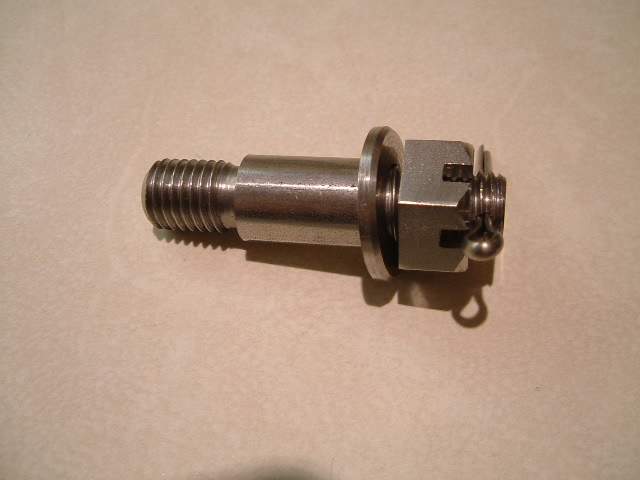

ss tiller and clutch studs Tiller and clutch lever studs, bronze spring, but stainless, washers, pin and nut, £13.50. Have some original plated version available, same price, if yours need to be 'original'.

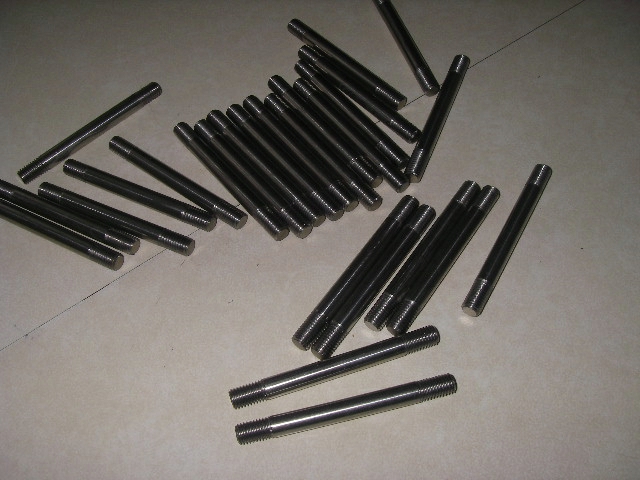

40 bracket tie bar s/s 5/16 BSF tie bar studs, fits the 40 bracket to replace the brass one that breaks! £6.00 each.

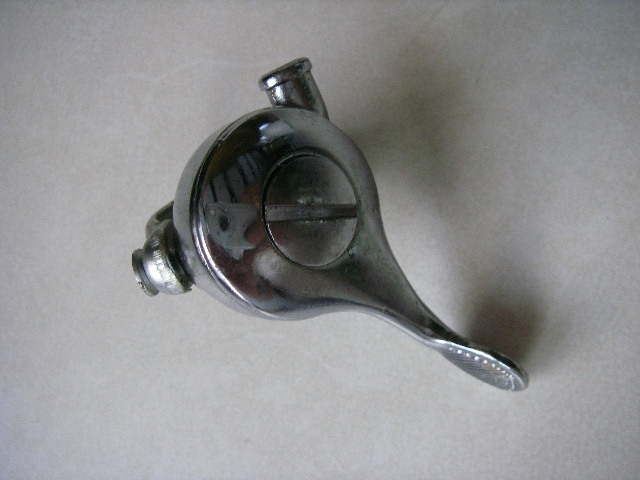

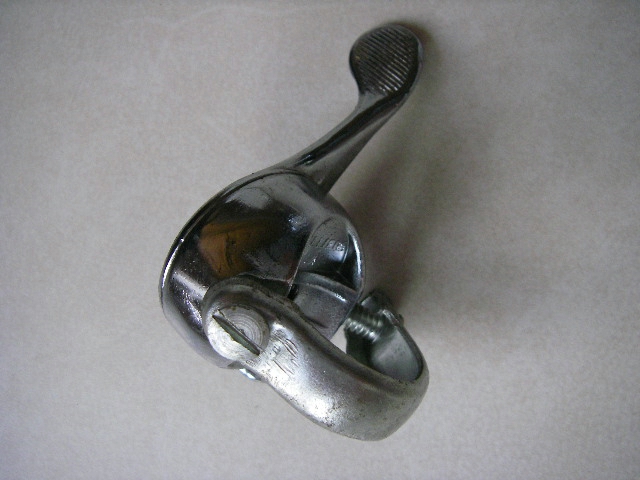

old stock villiers lever old stock villiers lever 2 Villiers 'thumb' throttle levers, original, new, but slightly soiled  SOLD OUT!! now £29.00...for a converted Amal lever.... end fitting socket a different size, but it works.

Used Villiers levers available sometimes, all have some corrosion, cruddy, but work, £10.00

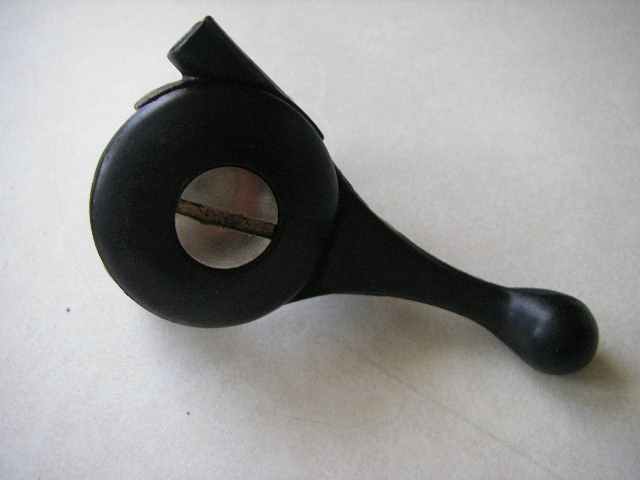

new amal levers New Amal levers, black £25.00 (No chromed ones any longer)

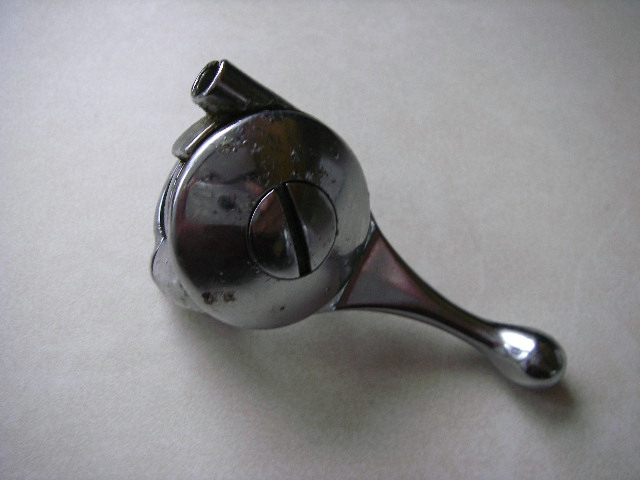

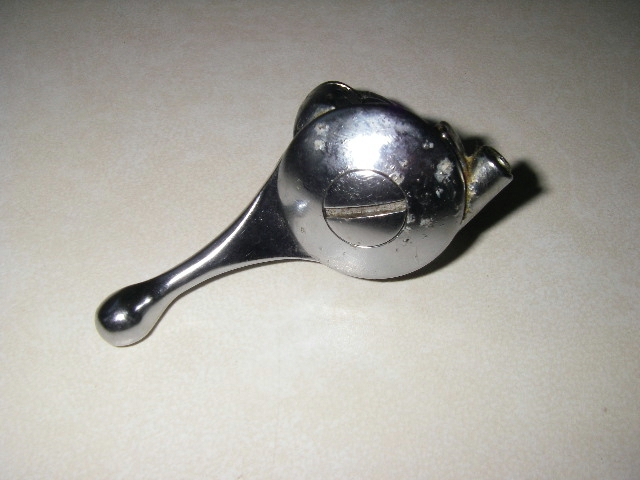

amal lever used good used villiers lever Used chrome plated Amal levers some corrosion, when available, £10.00

New in, set of 2 stainless screws for Amal levers only, £2.00 set



amal 2 jet air intakes  Amal 2 jet air intakes, new but soiled and cleaned up, £15.00 with choke... last one or two now, August 2017...

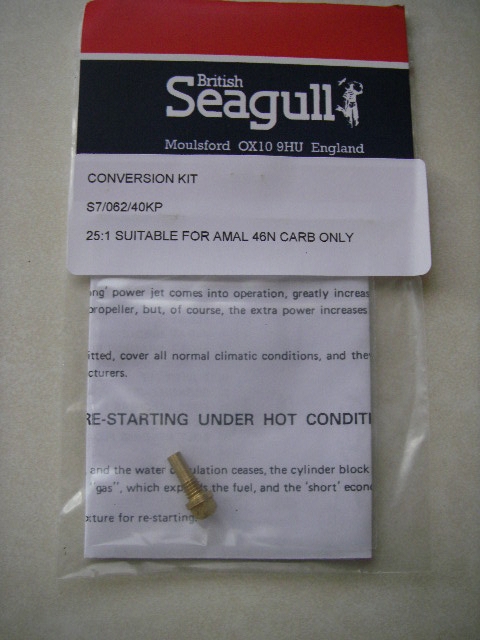

amal 25 to 1 kit Amal 25:1 Kit.  £6.50, (Despite what others might say these are not rare parts, but off the shelf items!)  Supplied with a free short radiator  spanner, you just need to cut a slot in the top and use with screwdriver, knock out the cross pin handle and it is ready to use.

Or adapt your own radiator key, lengthened, or make one from a length of old brake pipe, squared to 5mm.

villiers 25 to 1 kit  Villiers  25:1 conversion needles in stock at new price of £6.00! plus P&P  (£1.50 UK)

(Despite what others might claim these are not rare parts, these are off the shelf items!)

bing float chambers Bing Float chambers are back on sale!  After years where Bing Carbs were not repairable... £12.50 each

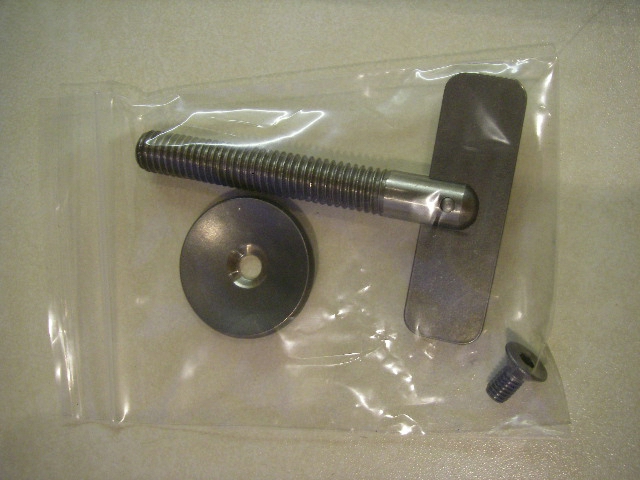

stainless improved  thumbscrew Stainless thumbscrews with captive washers. £16.50. Look just like the older chrome plated ones. (Brass ones still available, to order, £18.50).

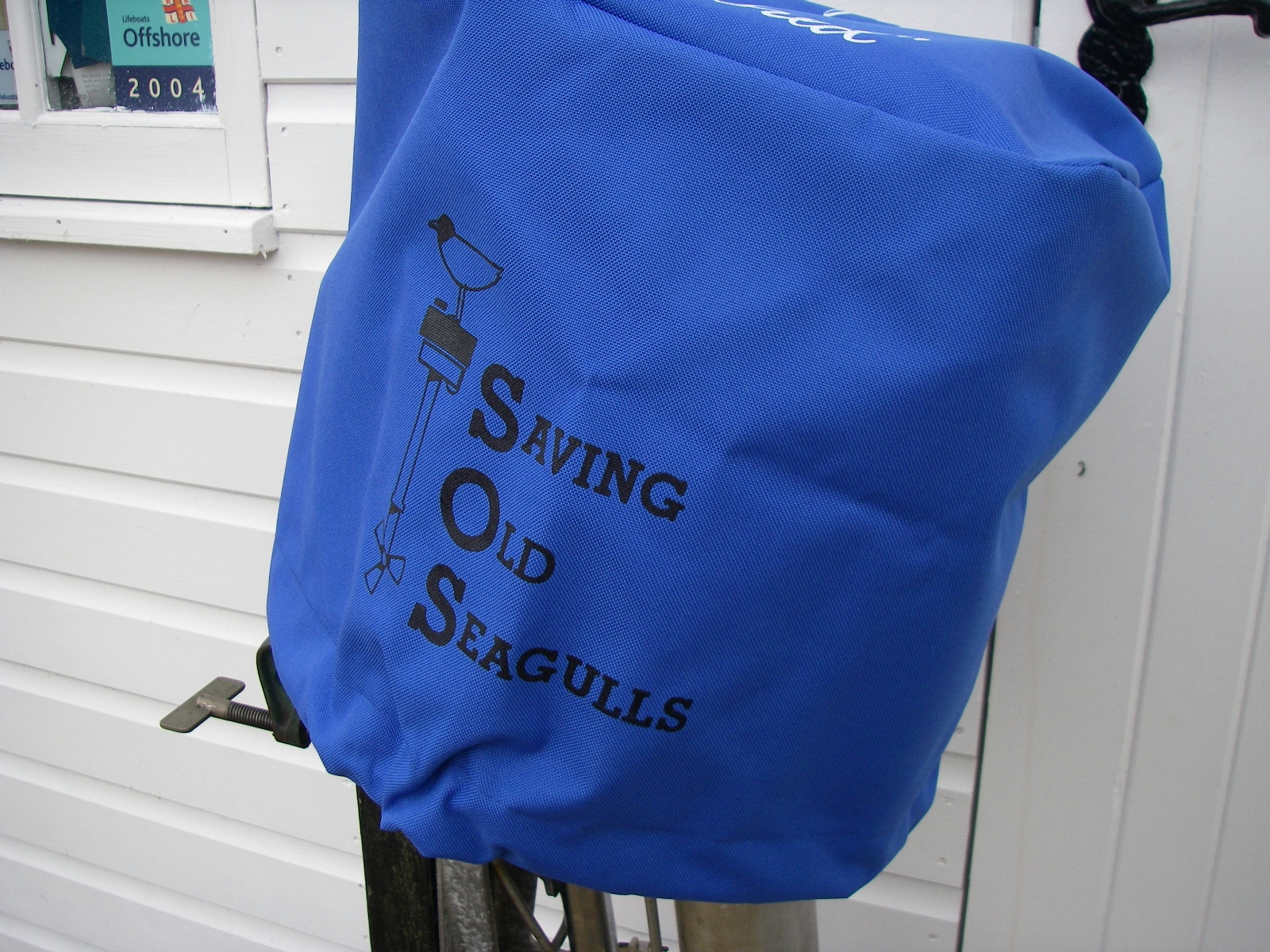

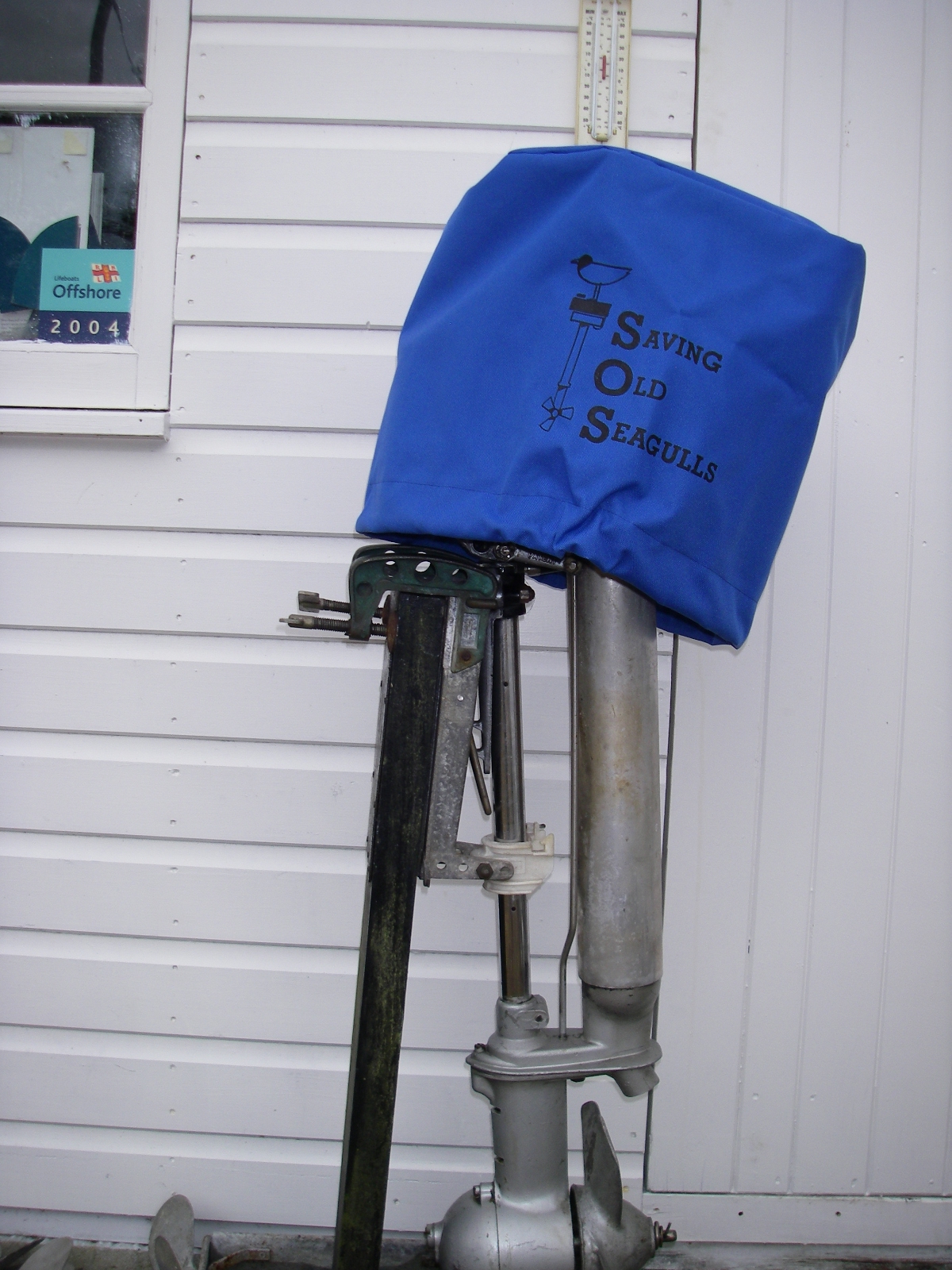

sos blue engine cover 1 sos cover on wspc logo on top of cover     Waterproof fabric outboard cover, with SOS logo. 19.50.   Back in stock December 2017.

Waterproof, blue,  fabric outboard cover, with SOS on the  side, has 'The best outboard motor in the world' printed on the top!  Will fit all British Seagulls! P&P 3.50, overseas air mail .. I would have to get quote.

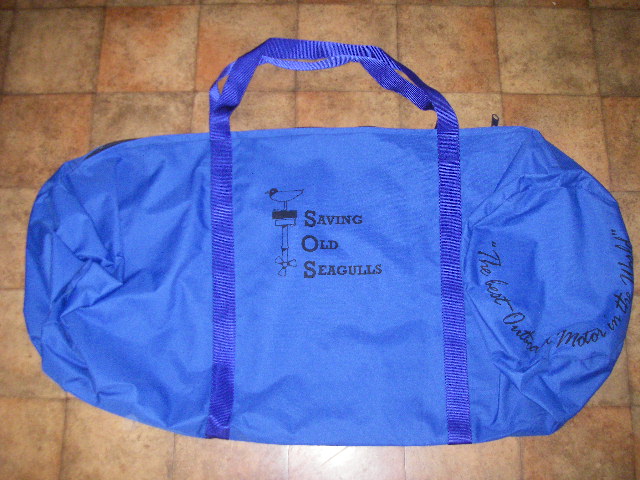

NEW in Seagull carry bags  37.50 (Back in December 2017.)

For standard shaft Seagull Forty's or Century's.  Heavy blue material with long zipper, 'Best outboard in the World' on one end and the SOS logo on the sides.  You just need to insert a length of old carpet inside to protect bag and outboard and it will save all the mess in the boot of the car  plenty of room for tools and fuel can too.  Strong carry handles.



tank transfer with man tank transfer 3  Full colour Waterslide transfers! £10.00

Waterslide tank transfers back in stock, as per the 1960 and 70's tanks. I have obtained sole stock of this transfer and it is the same as the one fitted to tanks 30 plus years ago! £10.00 each plus £1.50 P&P UK. 4.00 overseas.

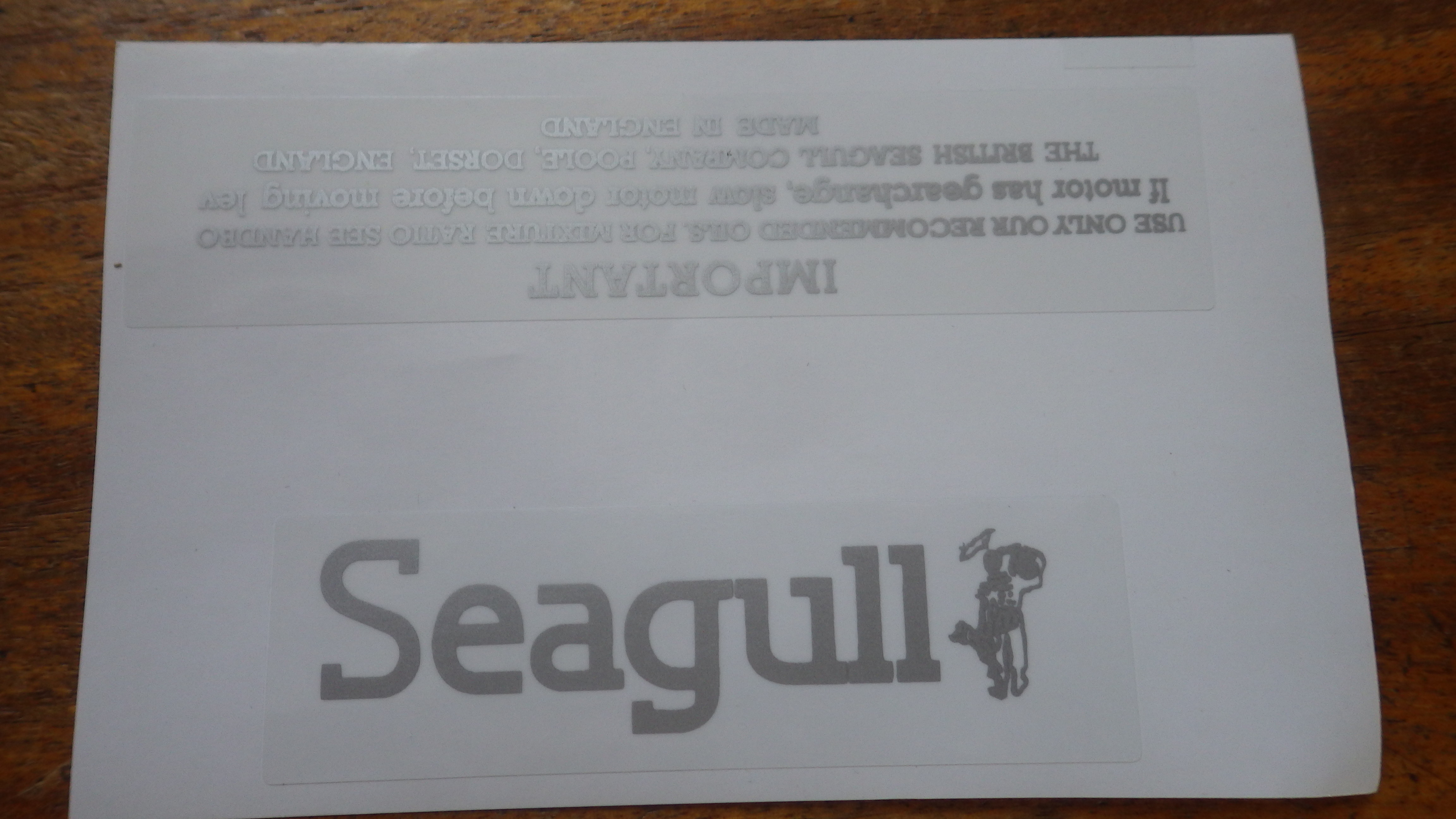

Also in stock, tank stickers with similar info, 25:1, as fitted on later Seagulls, after 1978.  and copies of early 10:1 transfer as sticker, both 5.85 each plus 1.50 P&P UK. 4.00 overseas.

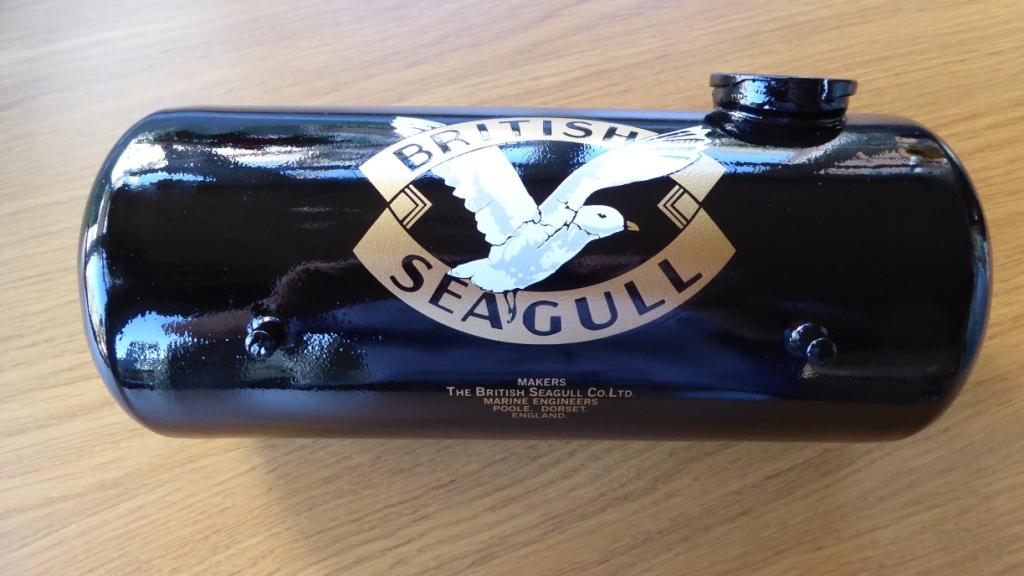

102 tank transfer, £10.00.  Back in stock December 2017.   The flying Seagull!!.  This is a copy of a genuine tank transfer, not the slightly different ones you will find on eBay. Well worth waiting for.     plus £1.50 P&P UK. 4.00 overseas.

Little Forty, small flying gull transfer 10.00. As fitted to the 1950s Little Forty models.  plus £1.50 P&P UK. 4.00 overseas.



Marston Gold Flying Seagull transfers. 10.00



British Seagull man sticker  New addition, 5" tall Seagull man sticker, blue and white Vinyl £3.50 or just blue, for fixing to a white background £2.00.  Cheaper alternative to the full transfer... while stocks last....

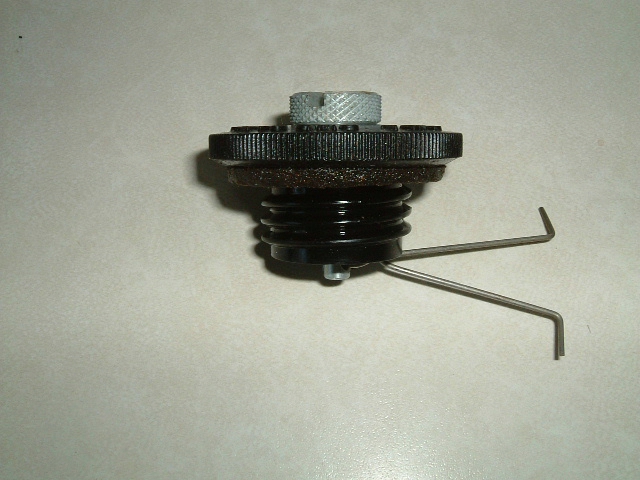

filler cap side Seagull filler caps, new £18.50,  or used, (when available), with new cork washer, £10.00

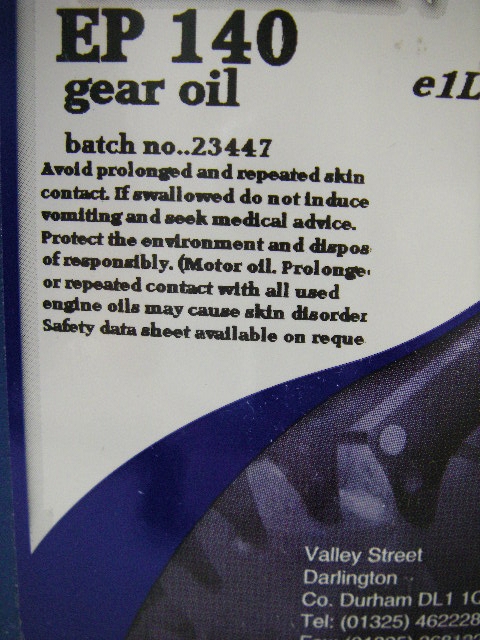

 ep140 oil ep140 label EP140 Gear oil, 1 litre bottles with flexi spout for ease of filling £5.50 (price reduction due to bulk buy!) (As it is so heavy  has to go 2nd Class post. P&P UK 3.50 on this item...)

Can now be posted to some overseas destinations, but as the cost is prohibitive, £12 to EU countries, and some countries still ban oil by air, it is easier and cheaper to buy 5 litres from the agricultural merchant...

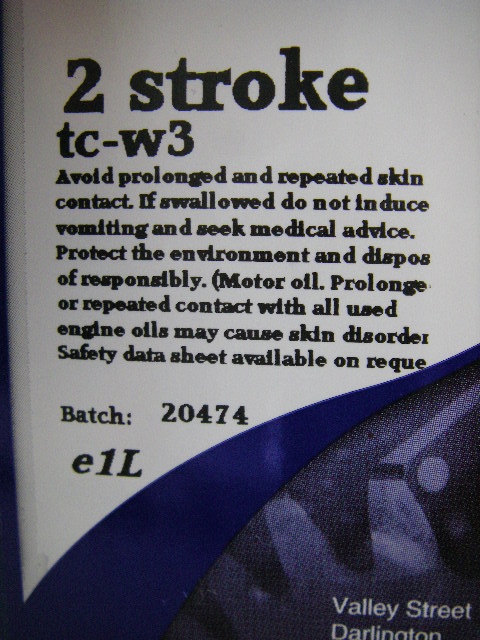

2 stroke oill 2 stroke label Also now available 1 litre bottles of Two Stroke oil, sufficient for 5  x 5 litres at 25:1 £6.50 (price reduction due to bulk buy!) P&P 3.50 2nd Class Mail.



I also have  1litre bottles of Biodegradable oil,  12.50... same P&P 3.50  Go Green!



slightly dented 3 pint brass tank Used Brass 3 pint tanks. Bare tank, no leaks. All with 'authentic' dents!  (slight ones) from 30.00. More heavily dented, for repairing, £15.00. Also cannot be posted overseas, for air safety reasons, sorry.

used brass fuel taps    Old taps with good filters and tap repair kit 20.00. New Taps in 29.50.

Plastic Taps ....   Sadly, or maybe not sadly as these were not that clever, they are no longer available...  But I have obtained a replacement that may well be a lot better.

Replacement rotary fuel tap 7.50 replaces the plastic 'pull for on taps'.  Still not as robust as the repairable metal ones!  But a lot cheaper.

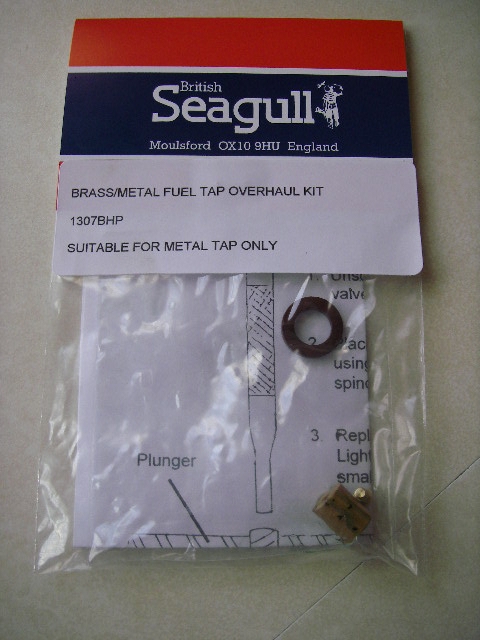

metal fuel tap kit Fuel Tap overhaul kit, including that tiny screw you normally lose on the floor, £4.50.  (Try the boiling trick first though! See the FAQ page)

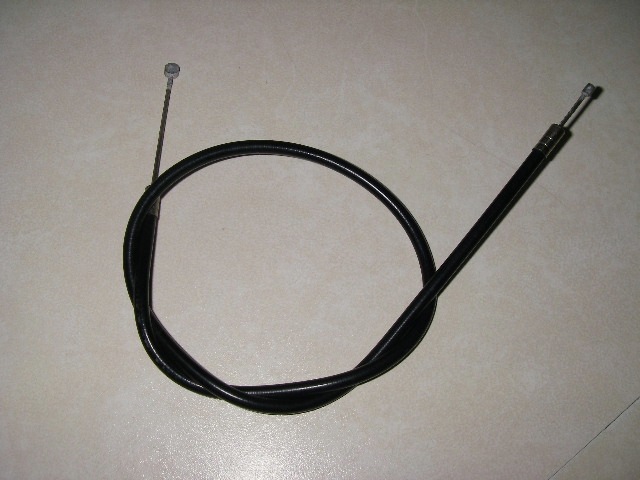

amal 2 jet cable Cables to fit all models, prices from £12.00 (Bing or Amal 400 series). Pictured Amal 2 jet £13.50

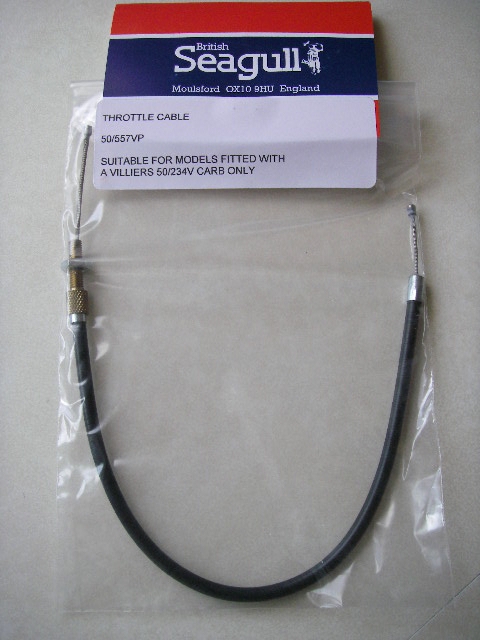

villiers throttle cable  Cable for Villiers, with adjuster. £13.50

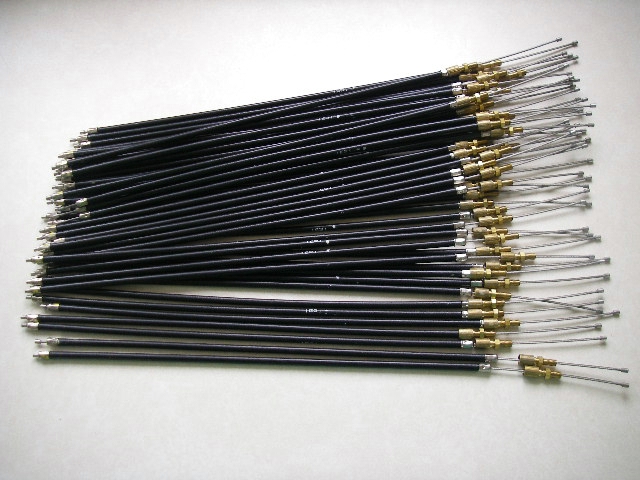

villiers pattern cable My own new Villiers 'Pattern' cable, 2" longer,  same quality, cheaper price tag....£10.50.....

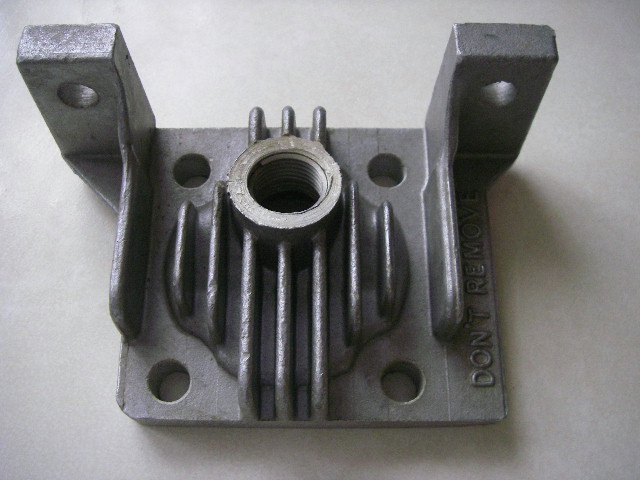

forty series head New 40 series head £57.00, used £25.00

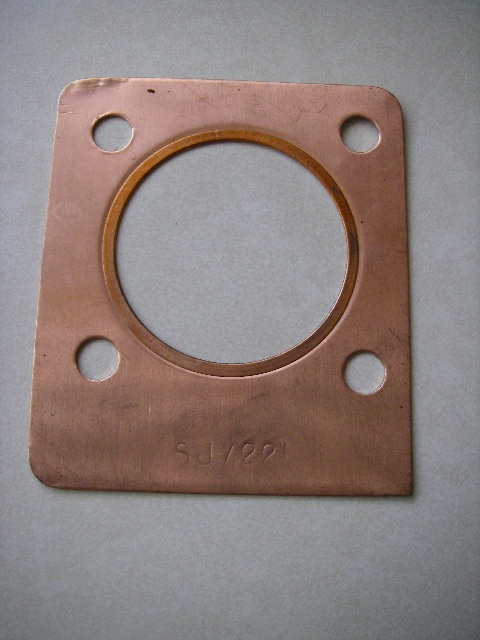

40 series head gaskets 40 series head gasket, August 2017,  sorry a price leap to 9.25!

(Use RTV sealant with all head gaskets!)

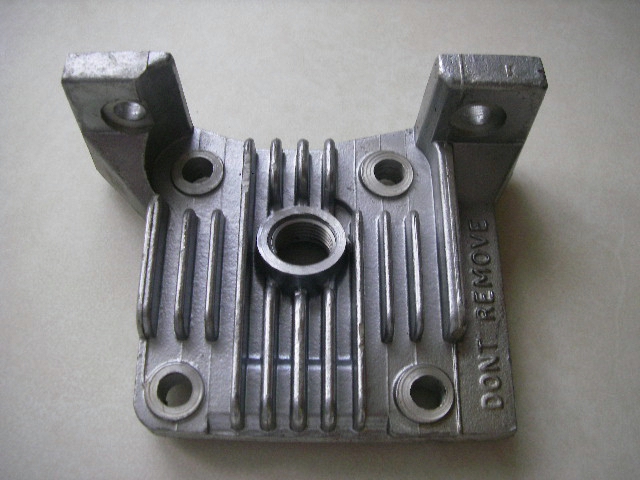

century and Silver Century head also model 90/110 New cylinder head for Century, silver Century or Model 90 £61.00, used reduced to 20

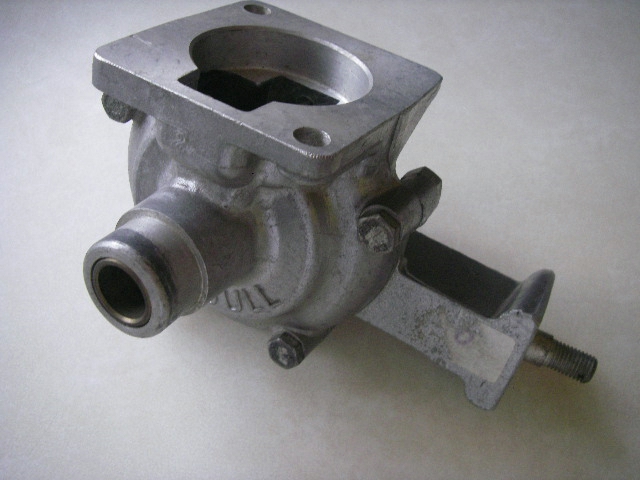

forty series crankcase Crank case for all forty models new  reduced to £60.00, last few.  Good used from £25.00

century series head gaskets Century and Silver Century head gaskets.    June 2017 back in stock but increased to 12.00

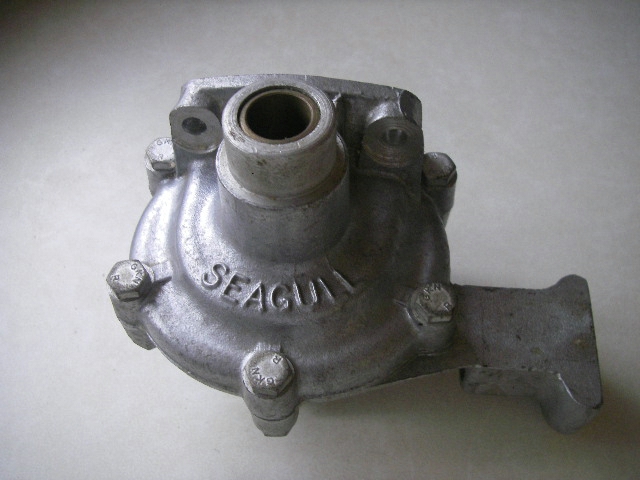

Century, Silver Century, models 75 to 90/110 crankcase Century and Silver Century plus models 75 to 90/110 crankcase, reduced to 60.00. Last couple now. Good used from £25.00.

used heads Used 40 heads reduced to £20.00

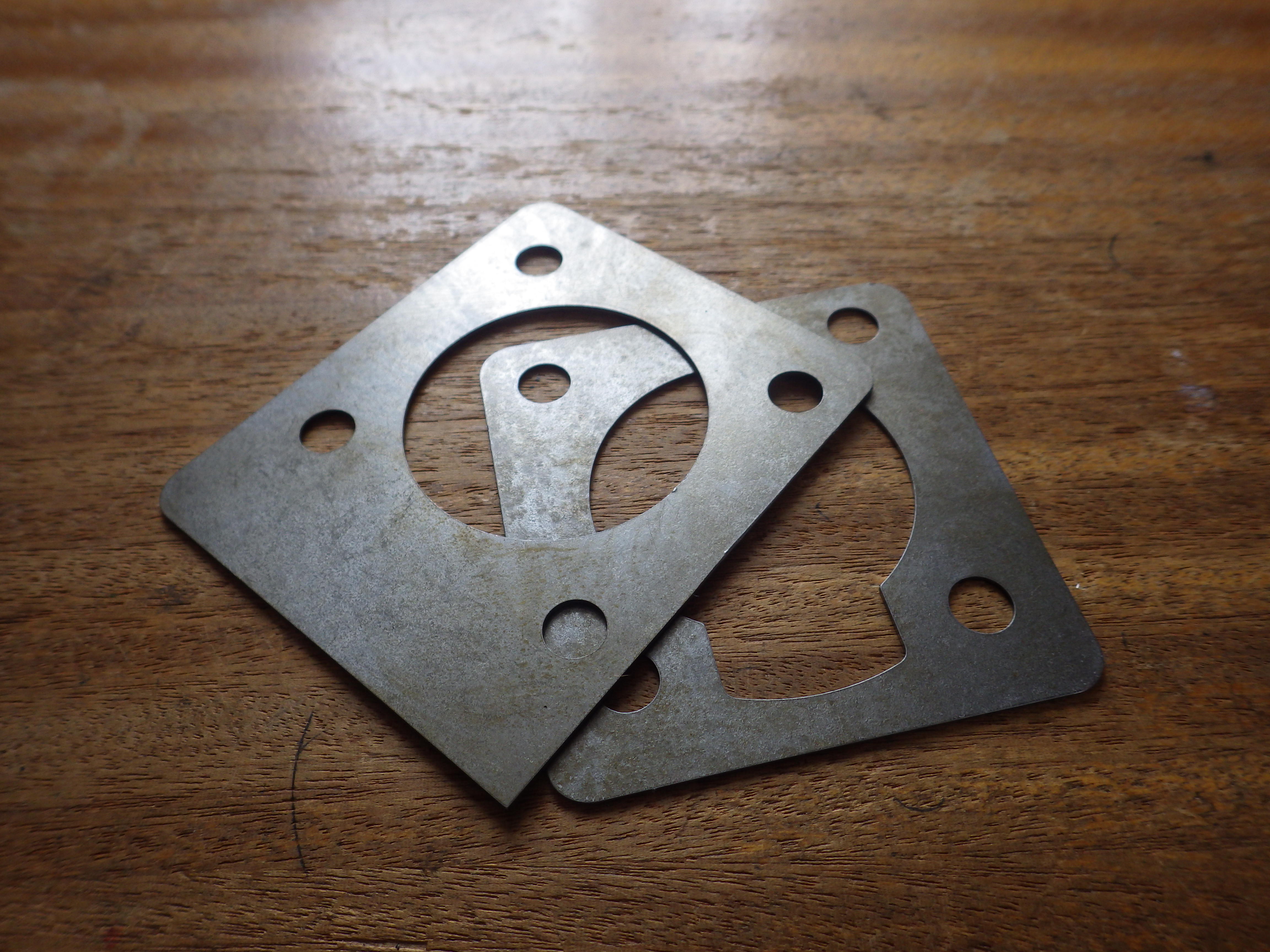

New in September 2017.  Little Forty Head and base plates, the correct thickness steel. These have been unobtainable for years, just a few sets available at the moment, 15.00 a pair.

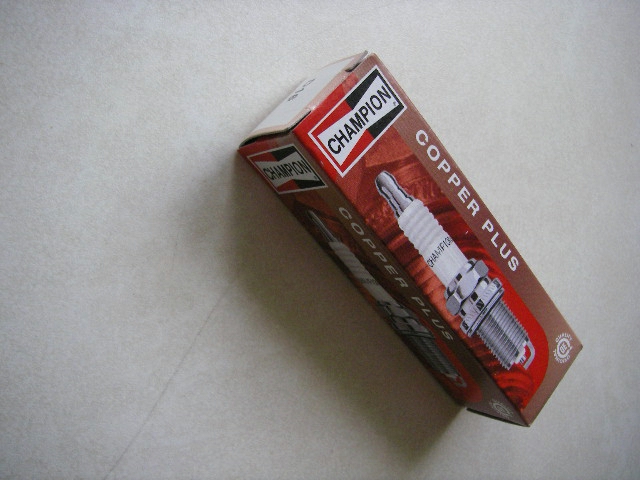

d16 spark plug D16, spark plug recommended for all Seagulls using 18mm plugs, 4.50

htlead and cap Seagull HT lead and plug cap, £18.00  Supplied separate, the plug cap screws on, simply make a dent in the end of the lead, in the copper core and screw together, then remove to check screw is into copper and refit, this time with some waterproof sealant.  Then it becomes  waterproof!

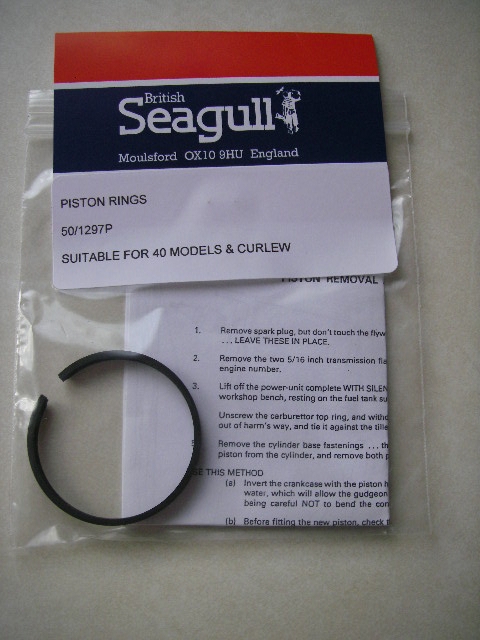

64cc 40 series rings Set of 2 piston rings for 40 models and Curlew, £11.50

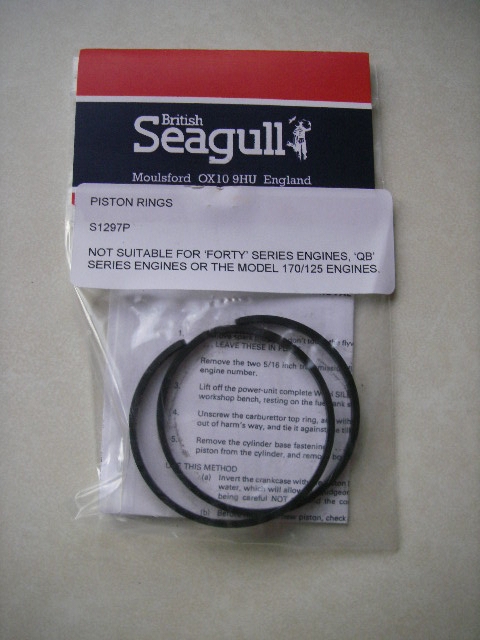

102cc piston rings Set of 2 piston rings for 102cc Seagulls, inc Century and silver Century, £14.50

Sorry the  new Ex Dutch Army 102cc, 1940's piston rings, coated with preservative, that sold in sets of 2, £5.00 a set, have all gone....  Thanks to Jan and Jeroen in Holland for salvaging these.

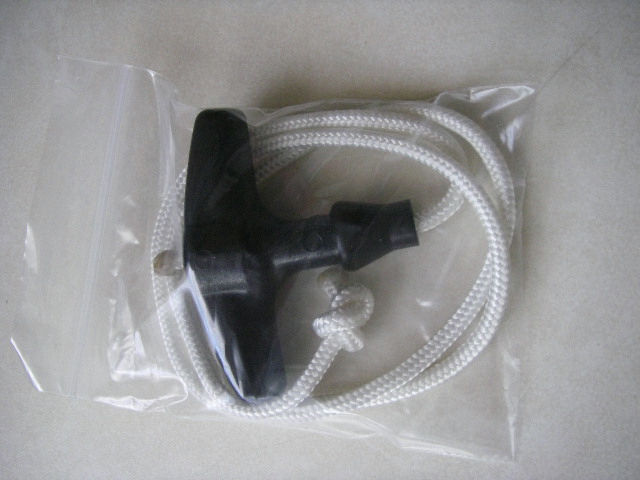

start cord Start cord with correct length cord!   £4.00!

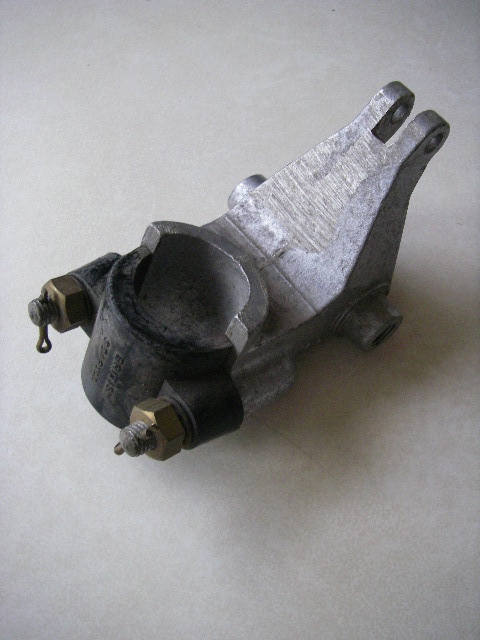

40engine lug Engine mounting lug for 40 models, £58.50 used 20.50

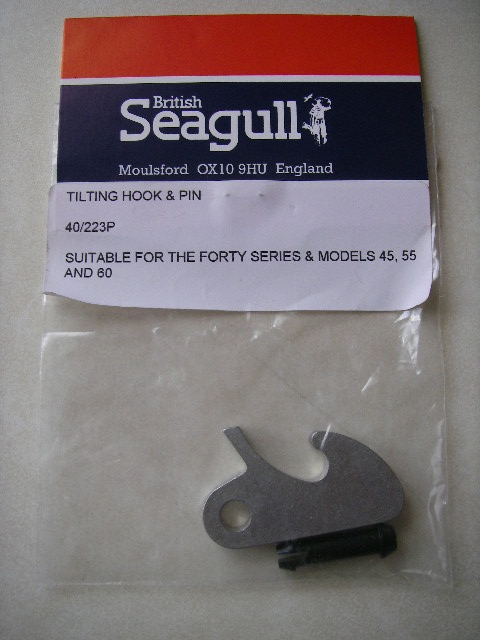

tilthook and pin Tilt hook and pin for 40 engine lug, sadly recently gone up to £10

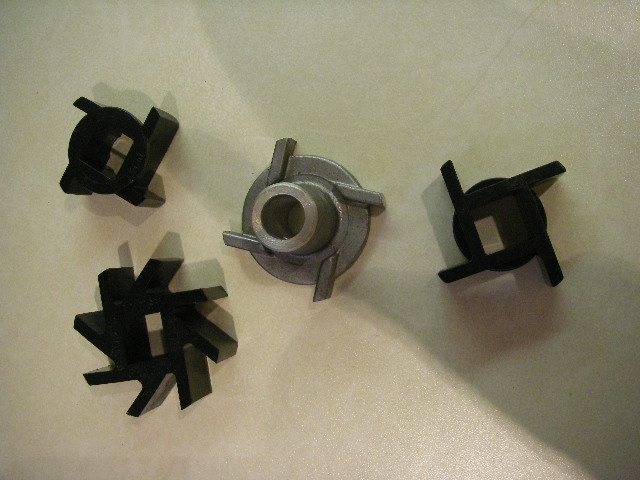

water pump rotors Seagull Water pump rotors, 8.50 for the 40 now, 6.50 for the 100.

Metal one for the model 102, 20

QB rotors available again, British Seagull have had new ones made, 25.00

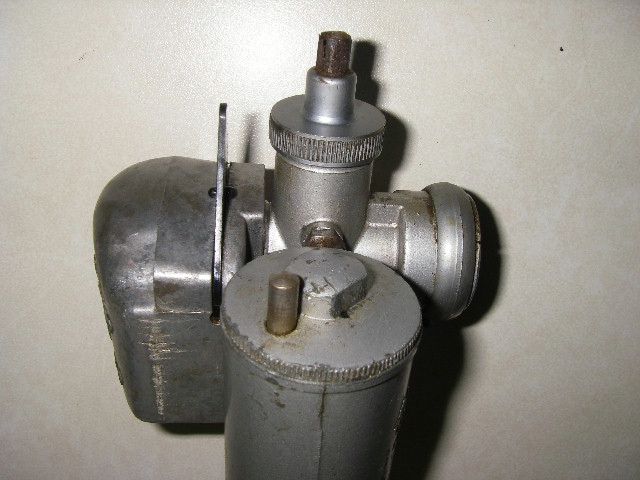

good used amal 2 jet carb good used amal 2 jet Sample of good used Amal 2 jet carb, complete with new washers, filter, choke assembly  and 25:1 jet, 60, when available.   Also refurbished Amal 2 Jet bare bodies with new sleeve insert for banjo bolt. Available 45.00 again exchange.

Few used Amal 416 carb bodies available   from 25.00.

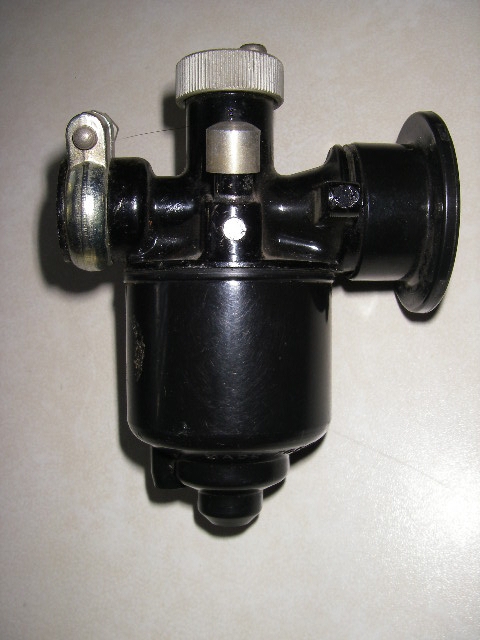

new villiers carb  Villiers carb, sold out of new ones now....  Used Villiers Carbs always available, grubby but complete from 40.00.    Fuel lines, new and used and new cables available too...

The Villiers air compensator that screws onto the front is no longer available new, but used ones available 8.00, while stocks last!

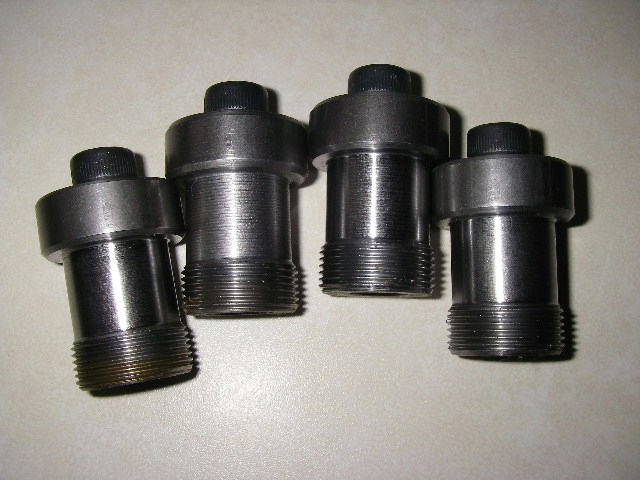

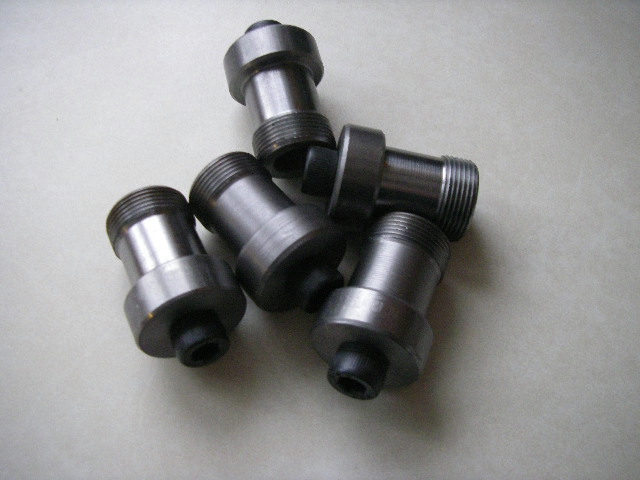

marston flywheel pullers 1 marston flywheel pullers 2 Marston Flywheel pullers available, specially made to remove the 'domed' Marston Flywheels.  October 2017 A few available again. Contact me for details.

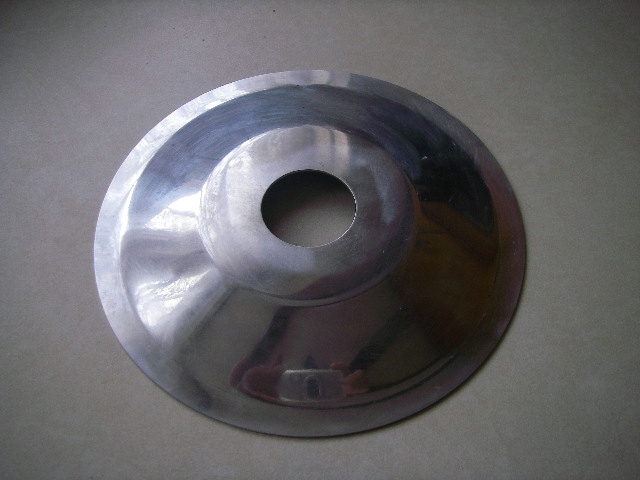

marston flywheel cover Marston pattern domed Flywheel covers. Contact me for details, a few have become available....

satin chrome air intakes Satin chromed steel air intakes for the early Marston Seagulls. sold out.

navy type air intakes  Brass air intakes for the Marston 'Navy type' Wartime Seagulls. Beautifully turned and polished they only fit the Amal 2 Jet.  20.00 each.  one left...  October 2017...

chrome plated air intakes Late Marston highly chromed steel air intakes for Marston engines, one left October 2017

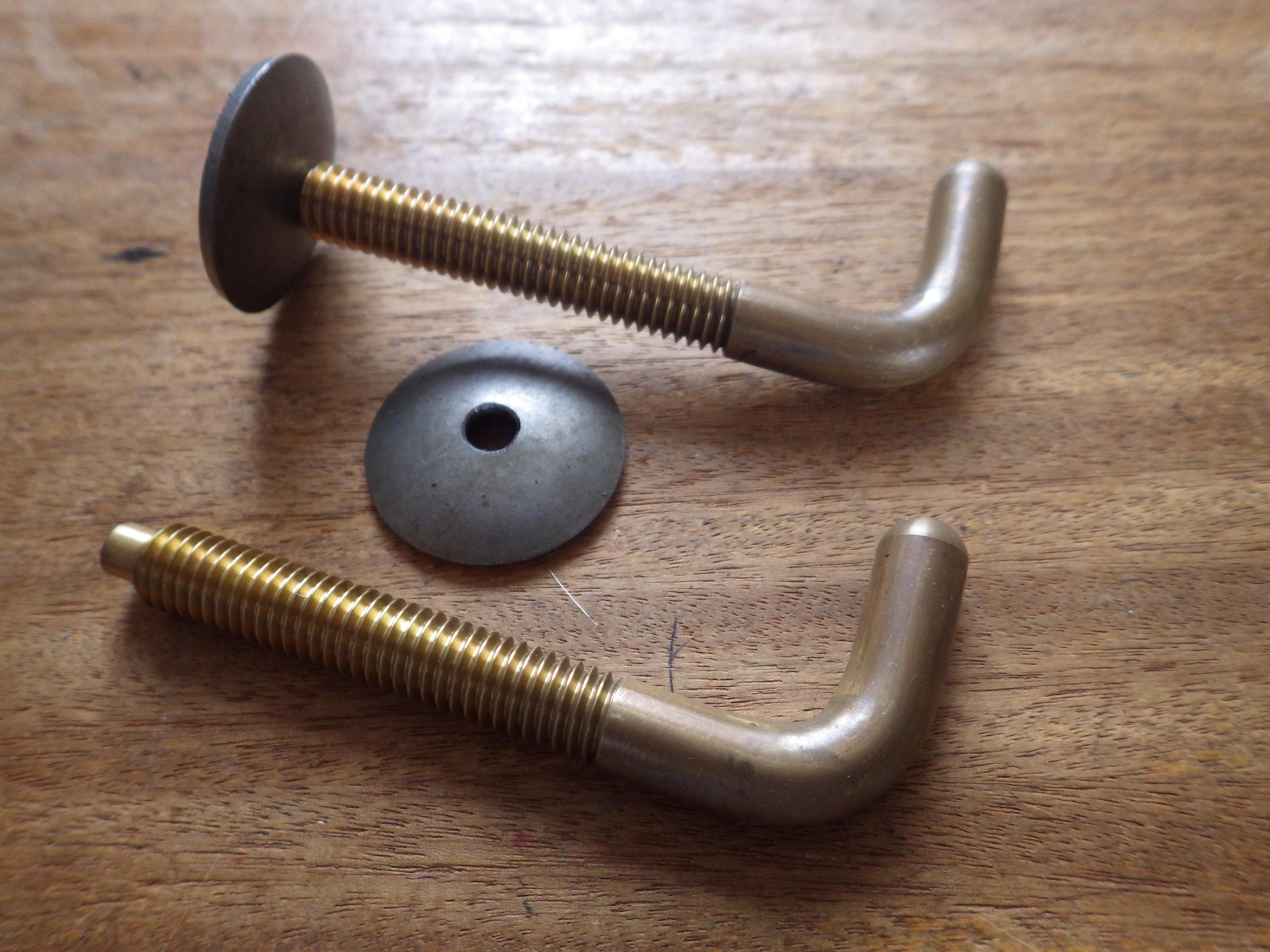

New in!  Early Marston/SD brass 'L' shaped thumbscrews, with mild steel cup washers, as close to the original as we can get! 16.50 each.  (33 a pair!).

  Little Forty thrust bobbins, newly made limited number available. 10.00 a pair.

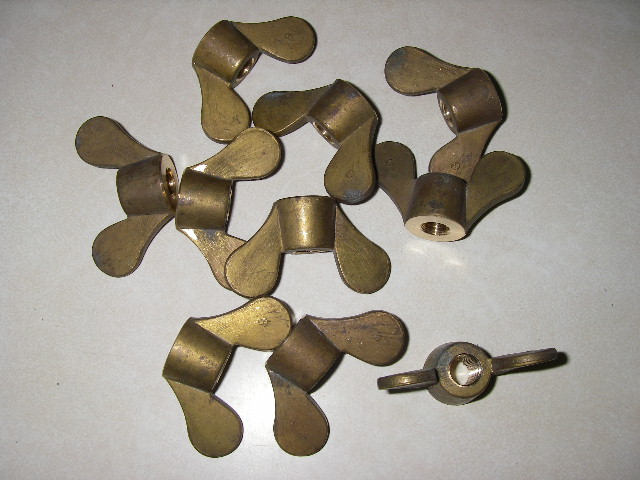

Wing nuts in bronze for model 102 tillers.  Back in stock after many years 5.00. Back in stock! June 2017...




Please note the spares listed are just a fraction of parts kept here, I can supply almost every part for motors going back as far as the 1950's and sometimes beyond, prices are only shown here so you do not get ripped off elsewhere!

John






Postal conditions for overseas customers.



For overseas postage to destinations other than the EU, (except Greece and Italy), plus Australia, Canada, New Zealand and a few other countries where the postal services have an excellent reputation, I send normal air mail Other places I now insist on tracked postage, at extra expense, and can take no responsibility for non arrival of parts.  I will supply tracking details and customers must trace and seek their own compensation if a parcel fails to arrive.  This unhappy situation has been forced on me because a customer claimed he failed to receive a parcel in South Africa and claimed his money back from PayPal, even though I had proof of posting etc.  I cannot afford to give spares away for free.





I will try to answer queries by e-mail of course, but I might ask you to speak to me on the phone to positively identify your motor. There are quite a lot of motors that do not have the correct engine numbers, due to the swapping of parts so common with these engines. This causes all sorts of problems, as there are carburettor and ign differences that I should be able to identify from your number, so please forgive me if I ask silly questions about your motor.



I work from home in the heart of the Dengie peninsular, Essex. 99% of my customers deal with me by post.  But if you can find Tillingham and want to call in, give me a ring, I am just south east of the village.

map of tillingham

I can normally supply most parts new, some hard to get parts, that are out of production, can sometimes be sourced second hand. I try to keep a fair stock of usable old part you might have to clean them up your selves though!

Mail or phone me for parts I will give you an e-mail link for online payment, or you can pay by cheque by post

PayPal payments accepted!   I send out a PayPal invoice link and using this you can pay with any credit or debit card securely on line. (Or a PayPal account!).

This means you can pay using major credit cards, and from overseas as well.

(For UK customers I still accept cheques and P.O.'s, contact me for address and postage prices.)



I will send your parts by first class mail, or if over weight, by Parcel Force.  My P&P prices are some of the cheapest you will find.

You will have to forgive me if you do not get your parts back inside 24 hours, I only get one post a day here, and that is often too late for me to catch the post out locally!

To get details of what I do in the way of servicing, and when I undertake it, please refer to the 'Scale Of Charges' page. You might also find the 'Retail   Outlet' page useful.











If I am not answering the phone, this might give you a clue to where I might be given half a chance!  Out sailing!!

pict4027 small



Please look through the 'FAQ' page first, you might find what you need there.

Try also the 'I. D. your British Seagull' pages, before mailing queries to me, as I now have to spend much time answering your e-mails! That, of course, keeps me from the workshop! UK queries may be better by phone, as I can ask you those extra little questions that might solve a problem easier. (Like why your 102 has a century plus gearbox!)
